The Refit

Amazing Grace — a 1994 Rosborough — refitted a system at a time. Hull to helm, one project at a time, mostly documented for the RF246 owners community along the way.

Amazing Grace on the lift
2022–2023

Hull, paint, and door seals

Repainted the hull hunter green (single-stage) and worked through the small stuff that adds up: replacing every door seal with 0.062" material after the originals gave out. Also spent a while nailing down whether this 95 Sedan Cruiser is actually a shallow-keel HSV or a deep-keel LSV — chines, pilot station, and rub rail all point one way, the title says another. Still unresolved.

Source: groups.io, "photo comparison: LSV vs HSV" & "Door seal material," Oct 2022

Nov 2024

Cockpit roof — going aluminum

Started exploring an aluminum hard top for the cockpit roof after a suggestion from another owner. Strength-to-weight, ease of fabrication, and it grew on me fast.

Source: groups.io, "Cockpit Roof Attachment," Nov 2024

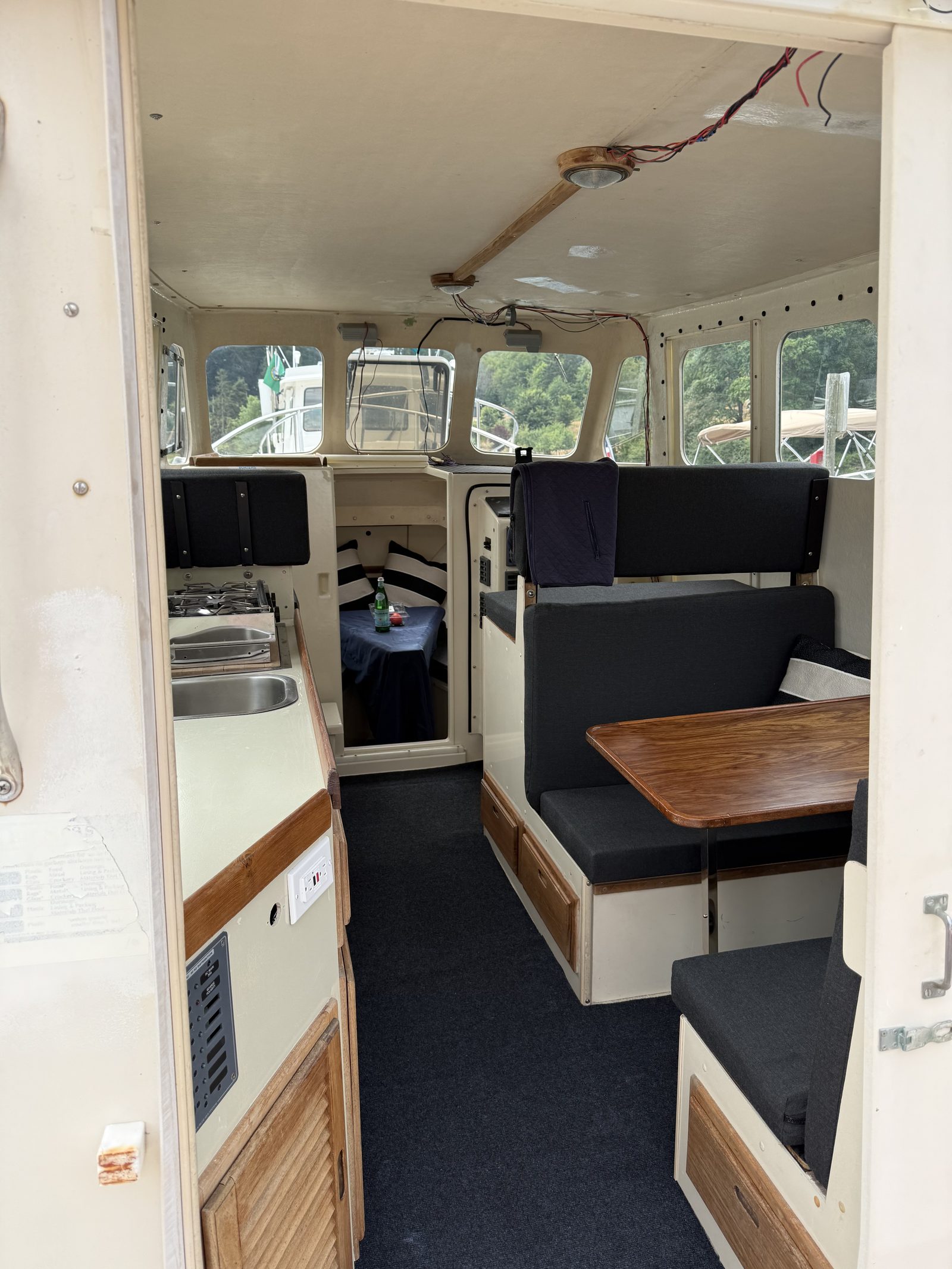

New cabin upholstery
Dec 2024

New upholstery

Out with the old cruel seats, in with new upholstery — a full reupholstery project to make the cabin livable for real cruising, not just short trips.

Source: groups.io, "RF246 New Upholstery," Dec 2024

Electrical panel work
Apr–May 2025

Heat, insulation, and wiring

Rated the factory insulation poor to nonexistent — and left it that way on purpose. A fully sealed cabin traps carbon monoxide along with the heat, so the Planar diesel heater went in under the starboard gunnel, in the cockpit, outside the cabin, keeping the combustion chamber away from where anyone sleeps. Built for the PNW: fresh air in, cabin dry, no recirculating. Wiring tunnels got a look around the same time while chasing down a wiring diagram for the 94 LSV.

Source: groups.io, "Diesel Heater" & "Wire tunnels," Apr–May 2025

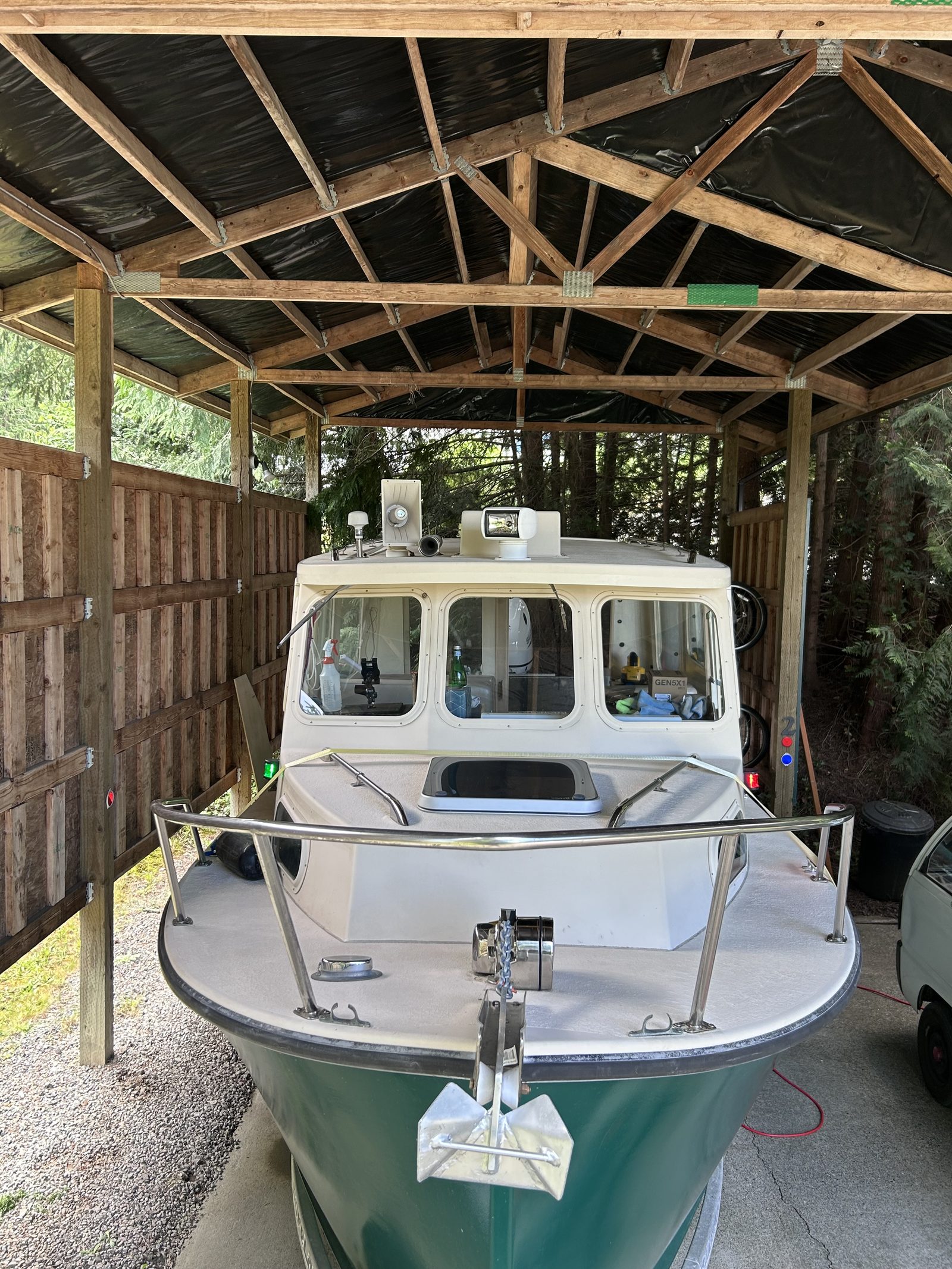

Amazing Grace under cover during refit work
Dec 2025

Navigation lights

Swapped the nav light bulbs for LEDs — barely draw any power, brighter, and they'll outlast the old ones by years.

Source: groups.io, "Navigation Lights," Dec 2025

Amazing Grace at the dock in fall
May 2026

Suzuki DF140 — chasing a telltale

No cooling telltale during trailer testing with muffs on the DF140. After enough conflicting advice from other owners, the call was to stop chasing it on the trailer and just splash the boat to see how it runs on the water.

Source: groups.io, "Suzuki DF140–No telltale on trailer," May 2026

This log is built from posts on the rosboroughrf246owners groups.io community — more entries and photos to come as the refit continues.
